V TYPE AIR FILTER >V TYPE HEPA FILTER, V TYPE MID-FILTER

  • One
  • Two


Introduction

In order to efficiently increase the filter area, media is designed to be pleated as many as possible.

Specification

1 The media area will be double compared with traditional separated type filter
2 Longer life span
3 Size and Type

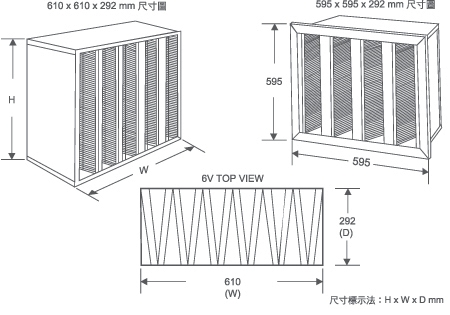

V TYPE HEPA FILTER
Type Standard 6V Standard 5V Single header 5V Half style 3V Single header 5V
Actual Size 610x610x292
(605x605x292) 		610x610x292 (605x605x292) 595x595x292 (592x592x292) 610x305x292 (605x300x292) 289x595x292 (287x592x292)
Air flow 56.6CMM 56.6CMM 56.6CMM 28.3CMM 28.3CMM
Pressure Drop ≦25mmAq ≦25mmAq ≦25mmAq ≦25mmAq ≦25mmAq
Efficiency ≧99.97%, ≧99.99% at 0.3um
Final pressure drop 50mmAq
Media Waterproof fire retardant glass fiber
Frame Galvanized / Stainless steel / Aluminum

V TYPE MID-FILTER

Type Standard 4V Standard 5V Single Header 4V Half style 2V Single header 4V
Actual Size 610x610x292 (605x605x292) 610x610x292 (605x605x292) 595x595x292 (592x592x292) 610x305x292 (605x300x292) 289x595x292 (287x592x292)
Air flow 56CMM 71CMM 56CMM 28CMM 28CMM
Efficiency 95% 85% 65%
Initial pressure drop ≦10 ≦9 ≦7
Final pressure drop 25mmAq
Media Waterproof fire retardant glass fiber
Frame Galvanized / Stainless steel / Aluminum
