HEPA AIR FILTER >HEPA BOX MODULE
|
|
Introduction
HEPA box completely match T-BAR and Gasket style ceiling system, offering the grade 1 to 10,000 of high cleansing air to clean room. With special metalized header design on the leeward edge, the gasket matches the header, making the box and filter seal closer.
Specification
| 1 |
Aluminum frame and cover are antirust |
| 2 |

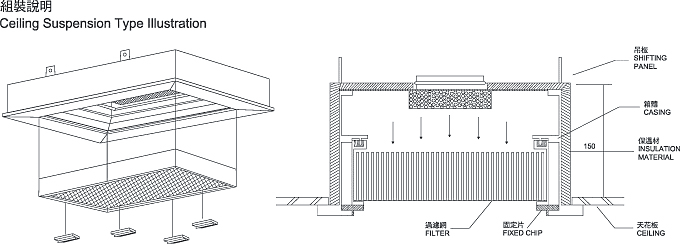

Installed on the T-GRID framework of ceiling |
| 3 |
The box contains a HEPA filter, DISPOSABLE/REPLACEABLE type. |
| 4 |
Type and dimension |
|
|

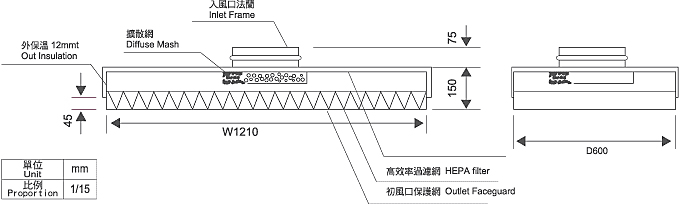

Disposable Type
| Disposable Type |
| Size |
600 x 1210 x 150mm |
Weight |
21kg |
| 570 x 1170 x 150mm |
19kg |
| 600 x 600 x 150mm |
12kg |
| 570 x 570 x 150mm |
10kg |
| Air Flow |
8.4~17.5CMM |
| Efficiency |
>99.99% at 0.3um / >99.9995% at 0.1~0.2um |
| Pressure drop |
HEPA : Initial <12.5mmAq / ULPA : Final <14.5mmAq |
| Frame |
Aluminum process |
| Media |
Waterproof fire retardant glass fiber |
| Insulation |
12mm PE |
| Tube diameter |
Φ 10", 12", 13",16" |

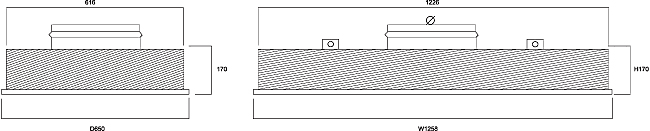

Replaceable Type
| Replaceable Type |
| Size |
Box size : 600 x 1210 x 170mm w HEPA size : 558 x 1168 x 85 |
| Box size : 570 x 1170 x 170mm w HEPA size : 528 x 1128 x 85 |
| Box size : 600 x 600 x 170mm w HEPA size : 558 x 558 x 85 |
| Box size : 570 x 570 x 150mm w HEPA size : 528 x 528 x 85mm |
| Air Flow |
8.4~17.5CMM |
| Efficiency |
>99.99% at 0.3um / >99.9995% at 0.1~0.2um |
| Pressure drop |
HEPA : Initial <12.5mmAq / ULPA : Final <14.5mmAq |
| Frame |
Aluminum process |
| Insulation |
12mm PE |
| Tube diameter |
Φ 10", 12", 13",16" |
|
|
