Introduction

High Temperature HEPA filter is test with 0.3um DOP penetrometer with efficiency of 99.97~99.99%. The air tightness is achieved by sealing the frame and filter media together by means of special sealants. Moreover, special gasket and bond also give assurance against high operational temperature (150~300℃) environment. These filters are used in special sites, such as radioactive circumstances, the exhaust exit of industrial oven, etc.

Specification

1 The series provide guarantee efficiency from 95%, 99.97% to 99.9995%.
2 Mini-pleat filter are widely used in clean room, class 1~1000
3 Material (below)
Frame Extruded Anodized Aluminum / Stainless Steel
Media Waterproof fire retardant glassfiber
Faceguard (Alumite Process). PVC Coated
Gasket Neoprene EPDM
Bond Bond Epoxy Resin
Temperature 60℃
Humidity 100%
Test Method DOP
Efficiency ≧99.97%, ≧99.99%, ≧99.999% (0.3um) 0.45m/s

  Air Flow (CMM) H x W (mm) Dep.(mm) Initial pressure drop Final pressure drop

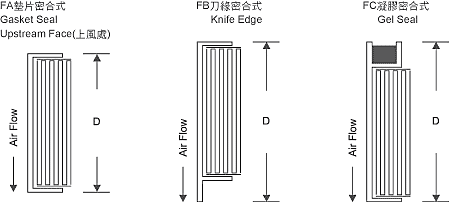

Gasket Type 2 305 x 305

70











50











150

12.5 mmAq 0.45m/s 25mmAq
4.3 610 x 305
9.1 610 x 610
11.4 610 x 760
13.9 610 x 915
18.6 610 x 1220
23.4 610 x 1524
28.2 610 x 1830
14.4 760 x 760
13.9 760 x 915
23.5 760 x 1220
21 915 x 915
28.4 915 x 1220
38.2 1220 x 1220
7.9 570 x 570
16.6 570 x 1170
35.1 1170 x 1170
Gel Type 7.5 558 x 558

78





85

14.5mmAq 29mmAq
16.2 558 x 1168
6.7 528 x 528
14.8 528 x 1128
6.9 536 x 536
15.1 536 x 1136
Knife Type 9.1 610 x 610

90









130

11.4 610 x 760
13.9 610 x 915
18.6 610 x 1220
23.4 610 x 1524
28.2 610 x 1830
7.9 570 x 570
16.1 570 x 1170
35.1 1170 x 1170
